3000 Watt Solar Wind Kit Off Grid System 48V Battery Charger :20pcs 100W Mono Solar Panel + 1000W Wind Turbine Generator + 40A MPPT Charge Controller + 3000W Inverter Peak 6000W

NOTES: We will ship with appropriate specification based on different countries as : USA: 110V / EU: 220V / AU: 240V

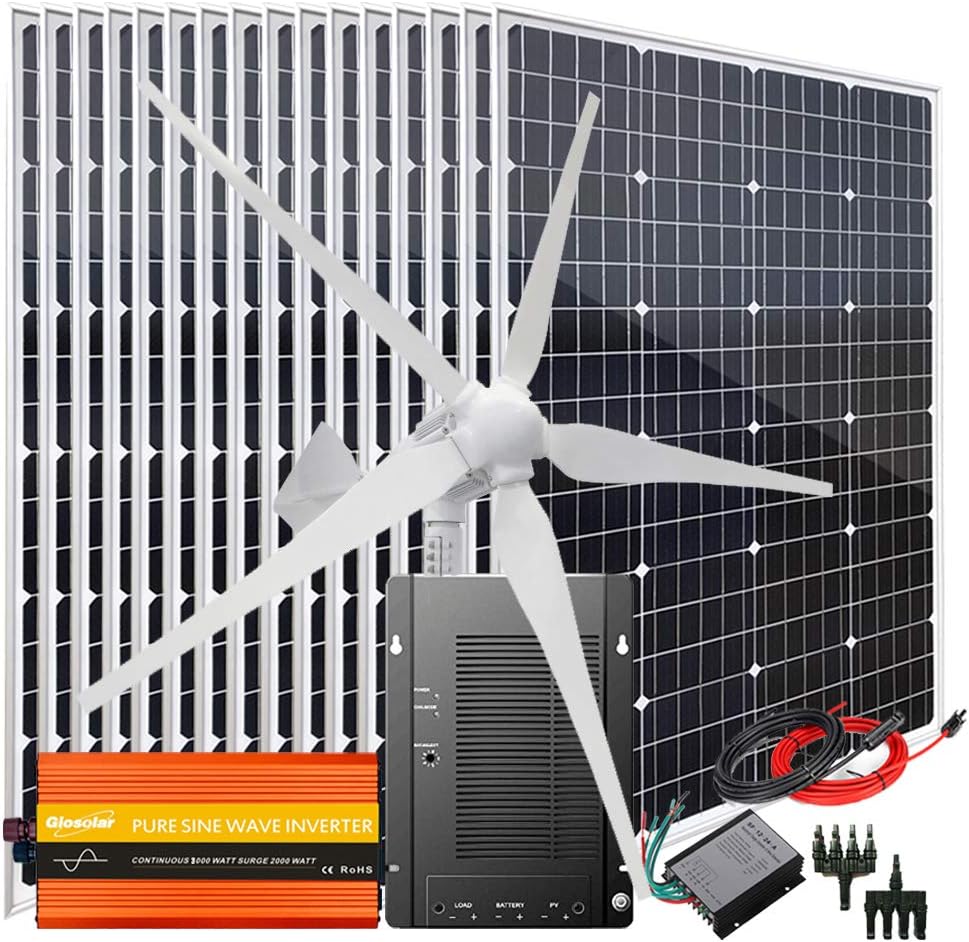

The Giosolar 2920W Solar Wind kit includes:

- 20x 100W Monocrystalline solar panels with 90mm of special solar cable and waterproof connectors
- 1x 1000W 48V Wind Turbine Generator with 5 blades

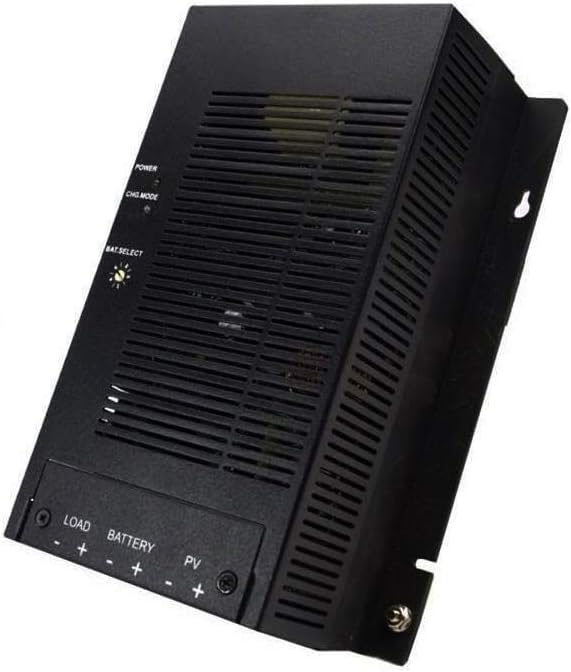

- 1x 48V 40A MPPT Solar Charge Controller
- 1x Wind Charge Controller
- 1x 3000W Peak 6000W Pure Sine Wave Power Inverter
- 1x 5M solar cable with connectors ( Red about 2.5M, Black about 2.5M)
- 20 Set of Z mounting brackets
- 1x 5in1 Branch Connectors Pair

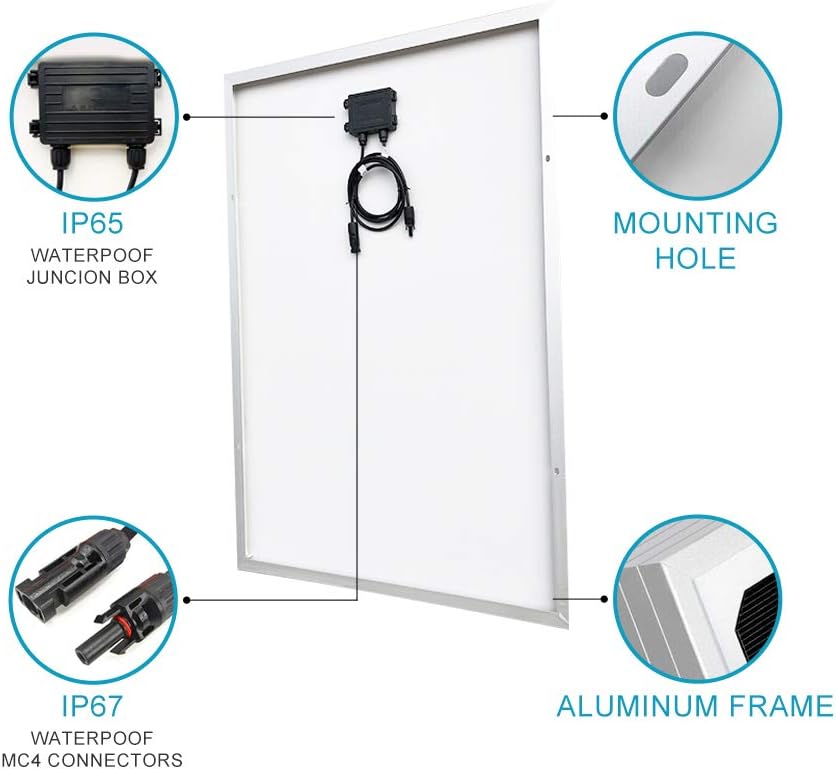

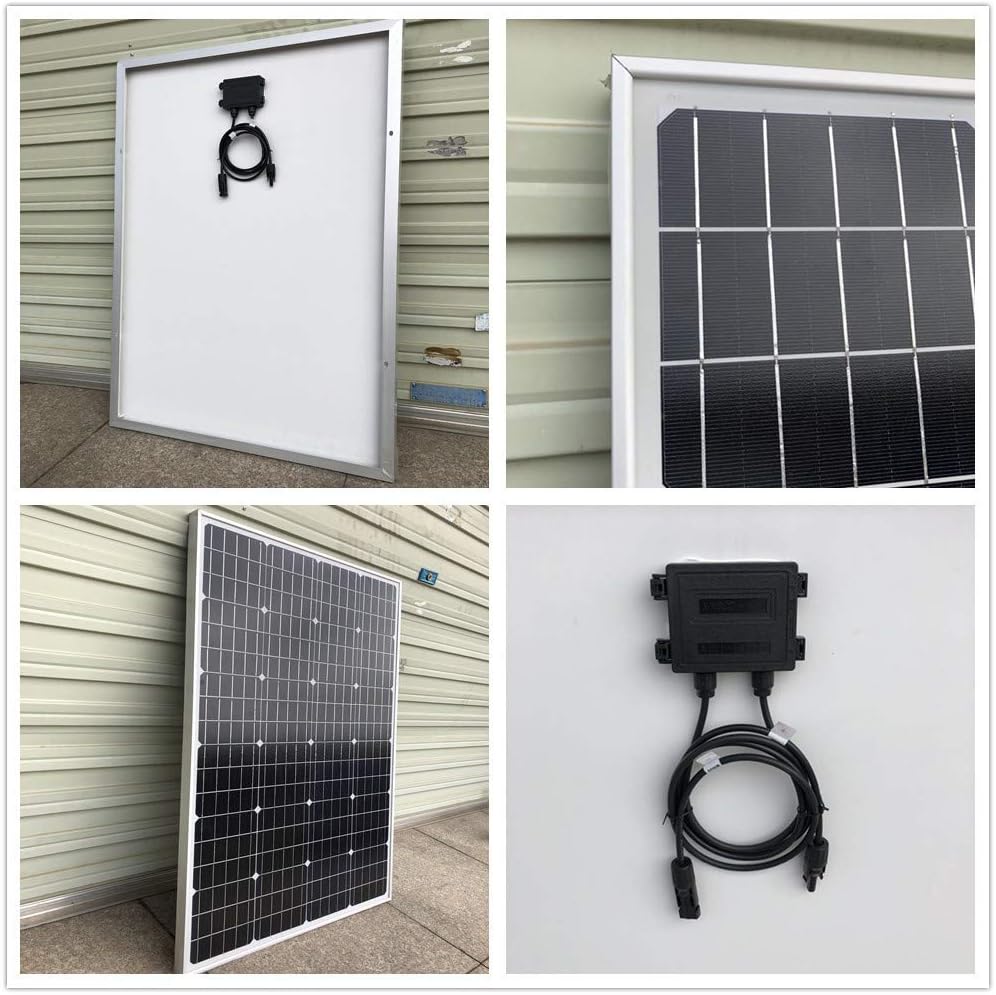

100W Mono Solar Panel Specification:

-Maximum Power: 100W
-Optimum Operating Voltage(Vmp): 18V
-Open-Circuit Voltage (Voc): 21.2 V
-Optimum Operating Current (Imp): 5.56A
-Short-Circuit Current (Isc): 6.1A
-Dimensions: 40.16*20.08*1.18inch (1020*510*30mm)
-Weight: 15.5 lbs (7KG) -90mm of solar cable with male & female connectors attached on the back of the solar panels

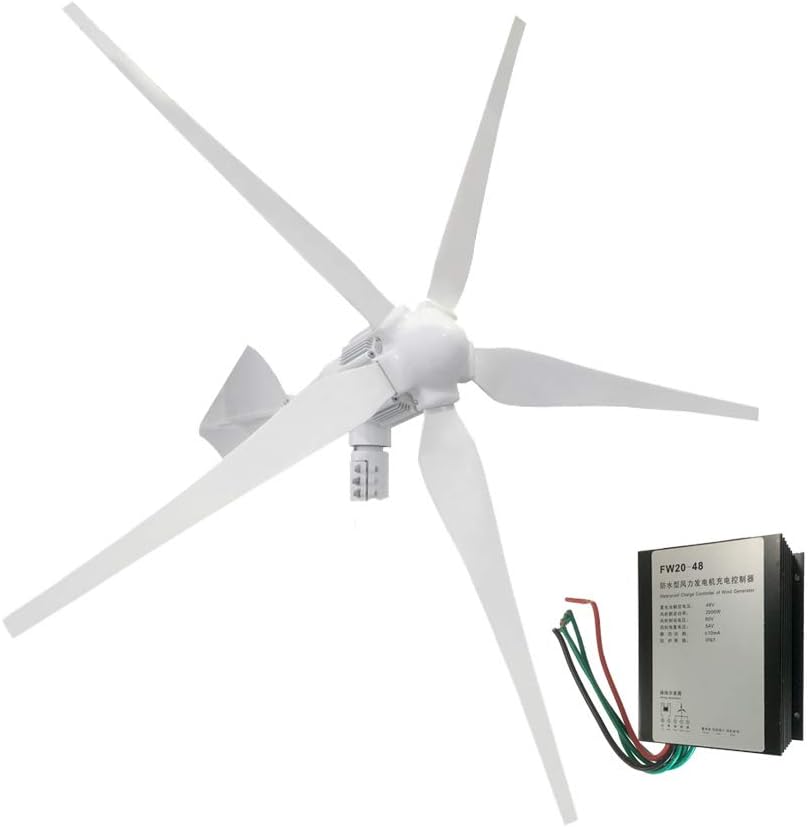

1000W 48V Wind Turbine Specification:

-Rated power：1000W
-Rated DC voltage：DC 48V
-Rated current：41A/21A
-Rated speed：650r/m
-Max power：1200W
-Number of blade: 5 pcs
-Starting wind speed：3m/s/2.5 m/s
-Cut-in wind speed：3.5m/s /3 m/s
-Cut-out wind speed：15m/s
-Security wind speed：40m/s
-Rated wind speed：12m/s
-Engine：Three-phase permanent magnel generator
-Rotor diameter: 2200mm
-Blade material: FRP (fiber glass- reinforced plastics)
-Output line anti-winding device: Over all three-phase commutator
-Over-speed wind protection: Tip stall protection + tumed protection + electomagnetic brake
-Equipment surface protection: Aluminum oxide + plastic coating
-Working temperature：-45°C-70°C
-N.W：31KG
-Packing material: Wooden case and foam material

Additional details

• Material Type : Monocrystalline Silicon

Features & Specs

• Amperage Capacity : 5.56 Amps
• Connector Type : MC4
• Efficiency : Standard Efficiency
• Maximum Power : 100 Watts
• Maximum Voltage : 48 Volts

Item details

• ASIN : B088WRHTSL
• Brand Name : Giosolar
• Manufacturer : Giosolar
• Manufacturer Part Number : GS-W1048S+16AMPV+M40-48V+T5M+4Y+16Z+3048
• Model Number : GS-W1048S+16AMPV+M40-48V+T5M+4Y+16Z+3048
• UPC : 739515718710

Measurements

• Item Dimensions L x W x H : 40.16'L x 20.08'W x 1.18'H
• Item Weight : 15.5 Pounds
