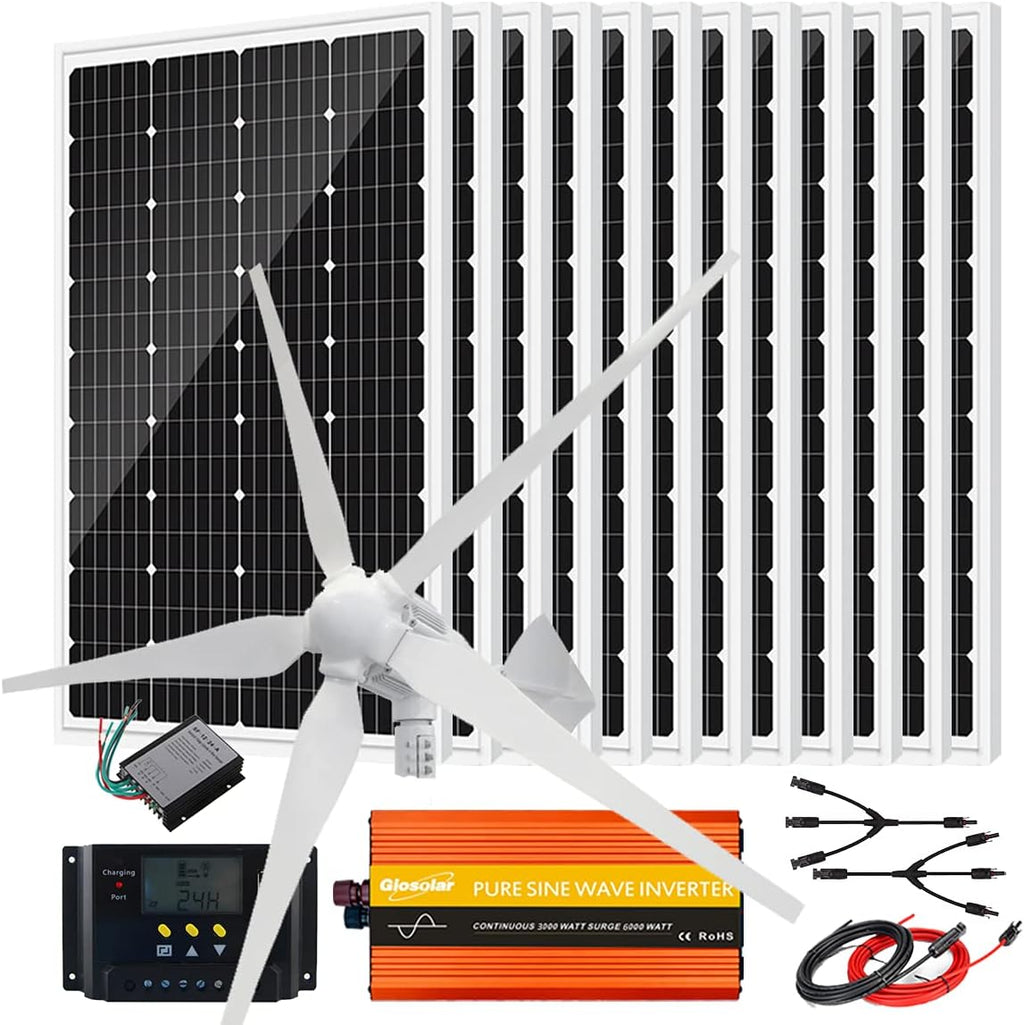

2440W 48V Solar Wind Hybrid System Solar Panel Kit with 1000W Wind Turbine Generator and 12pcs 120W Solar Panel and 3000W Power Inverter

120W Mono Solar Panel Specifications:

- Maximum Power: 120W
- Optimum Operating Voltage(Vmp): 18V
- Open Circuit Voltage(Voc): 21.2V
- Optimum Operating Current (Imp):6.67A
- Short-Circuit Current (Isc): 7.23A

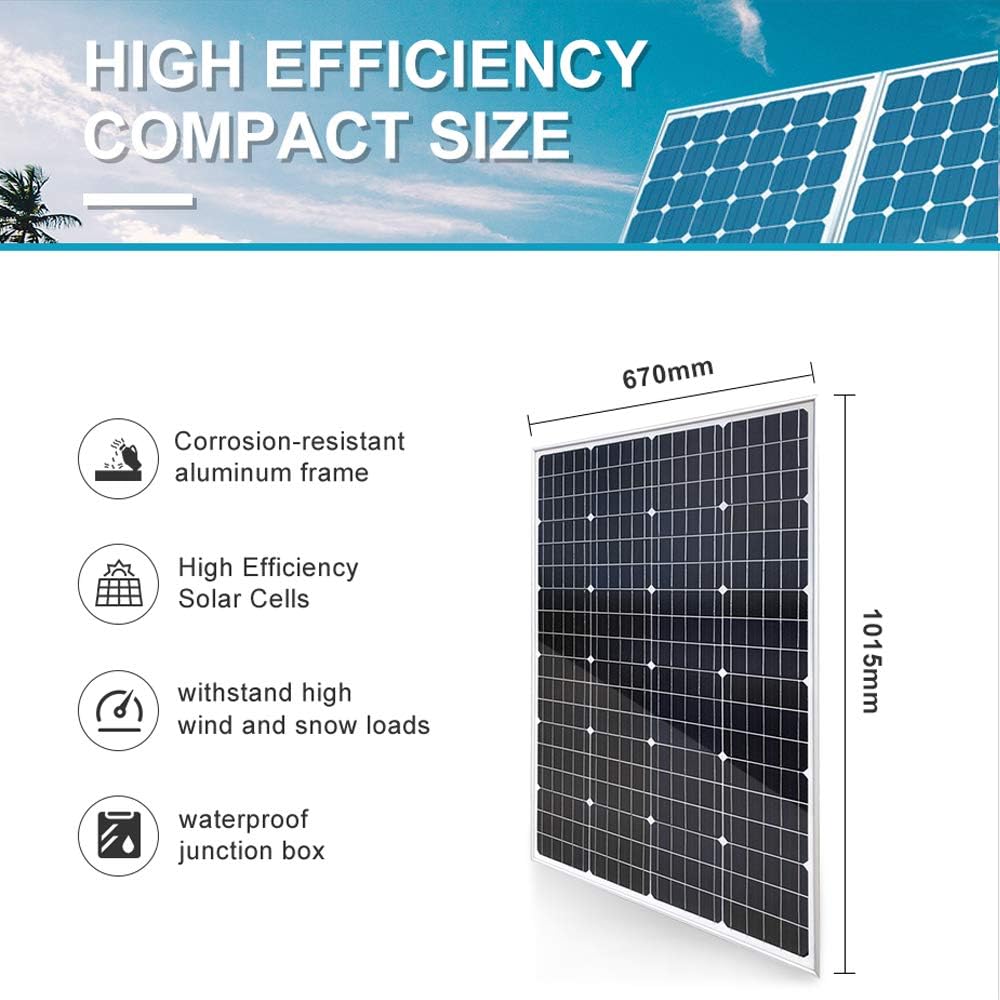

- Dimensions: 1015*670*30mm/19.96*26.38*1.18inch
- Weight: 15.5 lbs(7KG)
- 90mm of special cable with male & female connectors attached

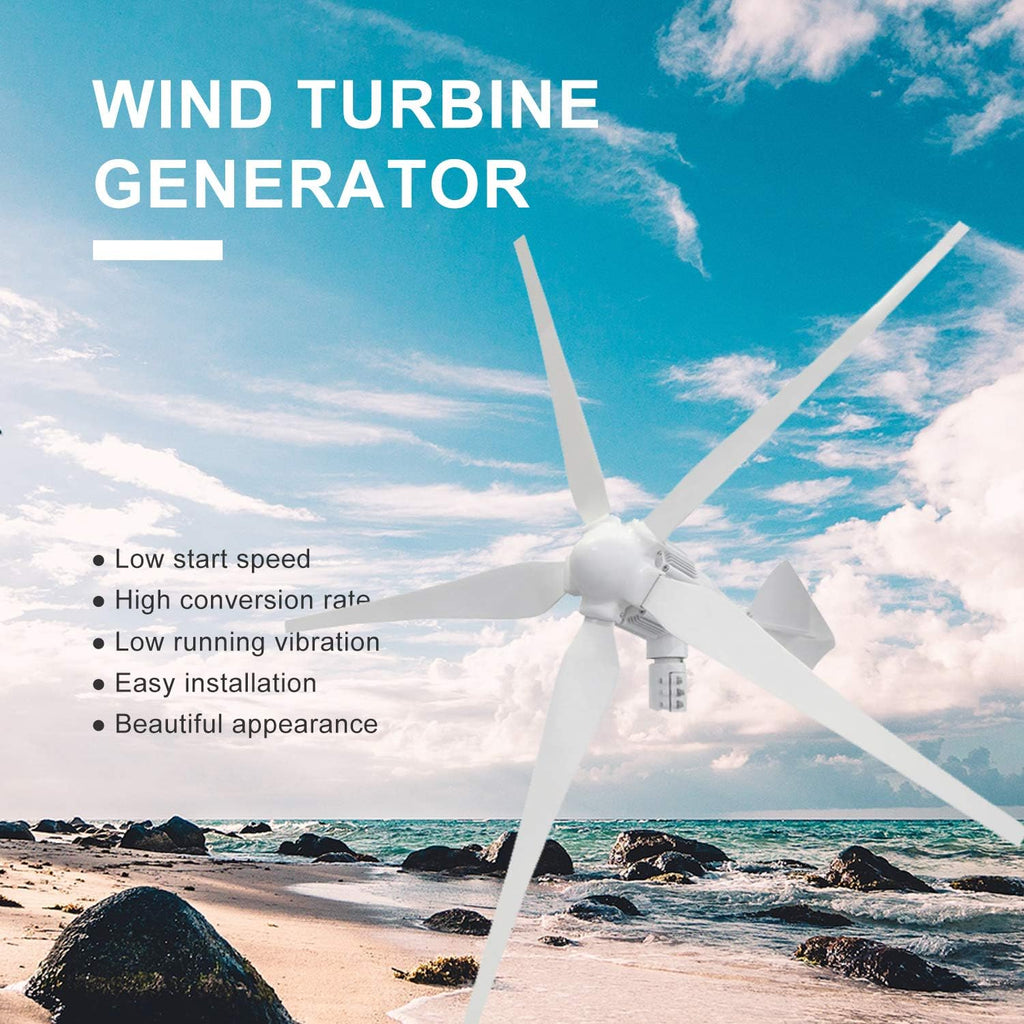

1000W 48V Wind Turbine Specification:

-Rated power：1000W
-Rated DC voltage：DC 48V
-Rated current：41A/21A
-Rated speed：650r/m
-Max power：1200W
-Number of blade: 5 pcs
-Starting wind speed：3m/s/2.5 m/s
-Cut-in wind speed：3.5m/s /3 m/s
-Cut-out wind speed：15m/s
-Security wind speed：40m/s
-Rated wind speed：12m/s
-Engine：Three-phase permanent magnel generator
-Rotor diameter: 2200mm
-Blade material: FRP (fiber glass- reinforced plastics)
-Output line anti-winding device: Over all three-phase commutator
-Over-speed wind protection: Tip stall protection + tumed protection + electomagnetic brake
-Equipment surface protection: Aluminum oxide + plastic coating
-Working temperature：-45°C-70°C
-N.W：31KG
-Packing material: Wooden case and foam material

Additional details

• Material Type : Aluminum, Glass, Monocrystalline

Features & Specs

• Amperage Capacity : 6.67 Amps
• Connector Type : MC4
• Maximum Power : 120 Watts
• Maximum Voltage : 48 Volts
• Special Features : Boat, RV, Roof, home, house

Item details

• ASIN : B09CTJY6P3
• Brand Name : Giosolar
• Included Components : Solar Panel
• Manufacturer : Giosolar
• Manufacturer Part Number : GSN-12AMPV+W1048S+BK3048+T5M+3YC+GS3048
• Model Number : GSN-12AMPV+W1048S+BK3048+T5M+3YC+GS3048
• UPC : 745396585501

Measurements

• Item Weight : 15.5 Pounds
