1600W Wind Solar System Kit with 3000W Inverter/10pcs 120W Solar Panel

1600W Wind Solar System Kit with 3000W Inverter/10pcs 120W Solar Panel/400W Wind Turbine Generator/Wind & Solar Controller,12V Battery Charger for Home Lighting Garden Marine (for 12V System)

$571.87 $1,495.00

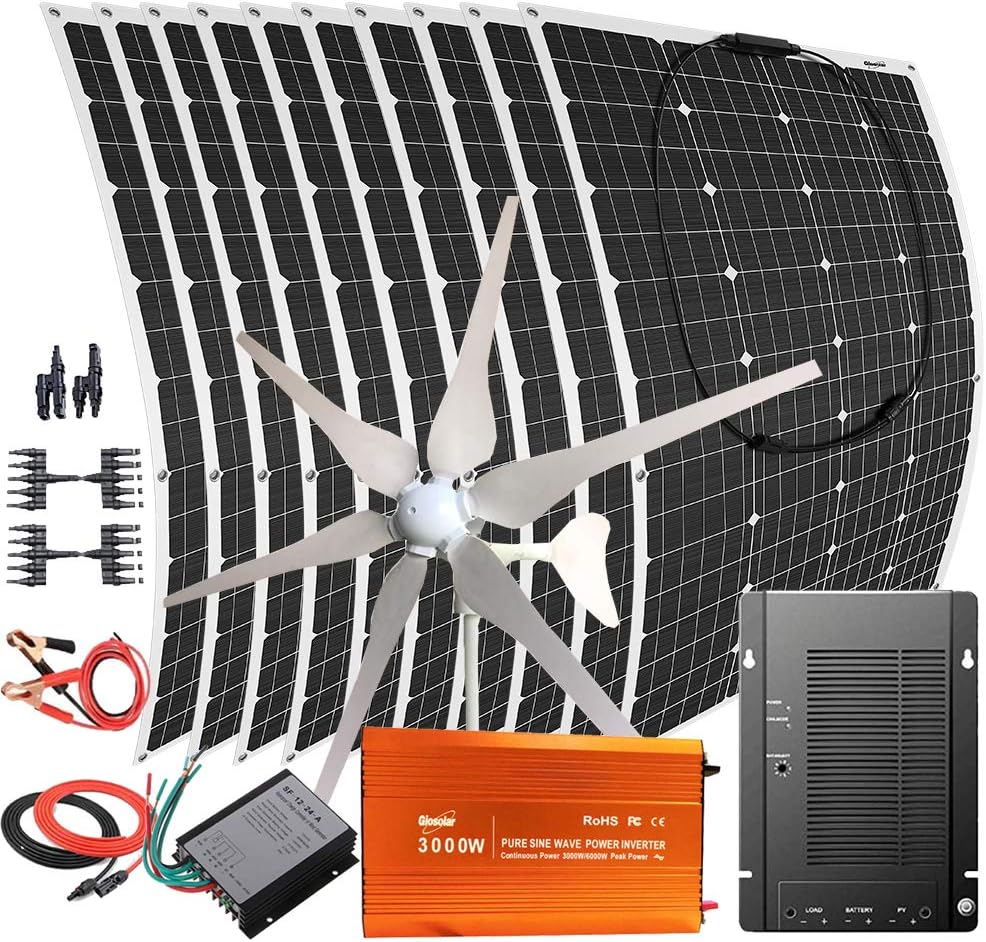

The Giosolar 1600W Solar Wind Kit Includes:

10 Pcs High efficiency 120W Flexible Mono solar panels with 90mm of special solar cable and waterproof connectors
1 Pc 400W Wind Turbine Generator with 6 blades

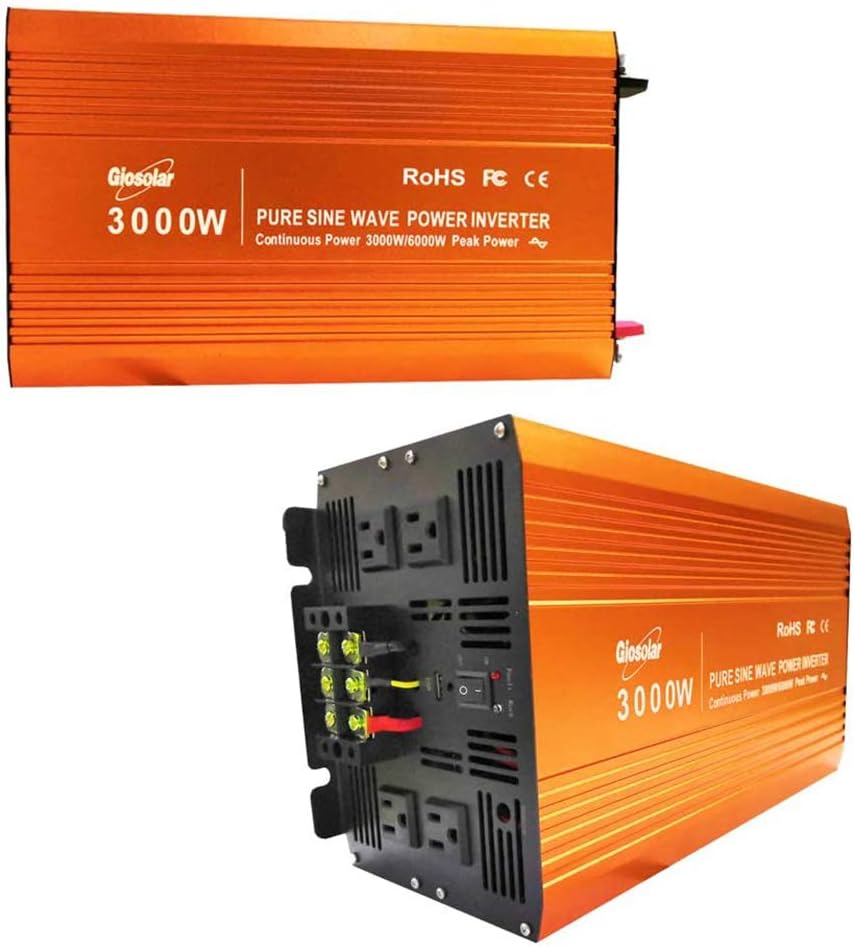

1 Pc 3000W Peak 6000W Power Inverter
1 Pc 12V/24V Wind Controller
1 Pc 40A MPPT Solar Charge Controller
1 Pc Battery Cable with clips
1 Pc 5M solar cable with Male & Female connectors ( Red about 2.5M, Black about 2.5M)
1 Set of Y Branch Connectors ( depends on your battery system 12V/24V)

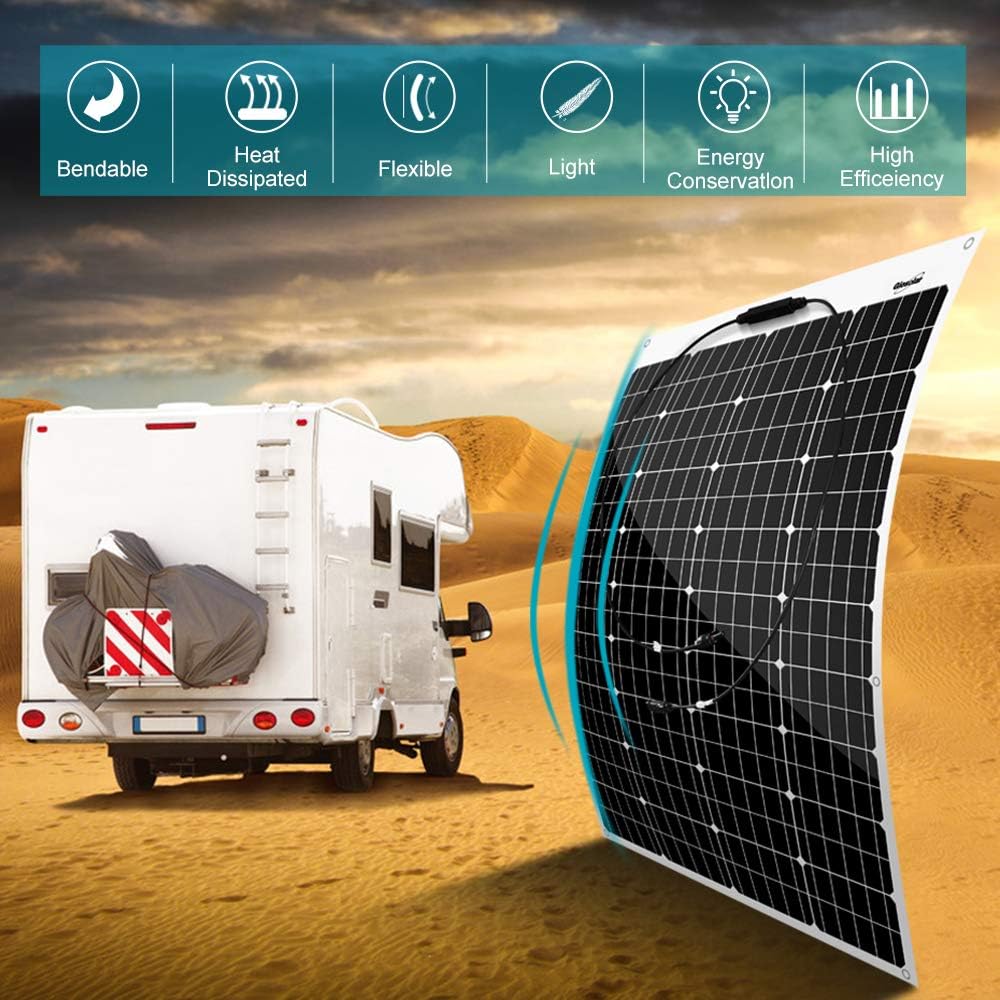

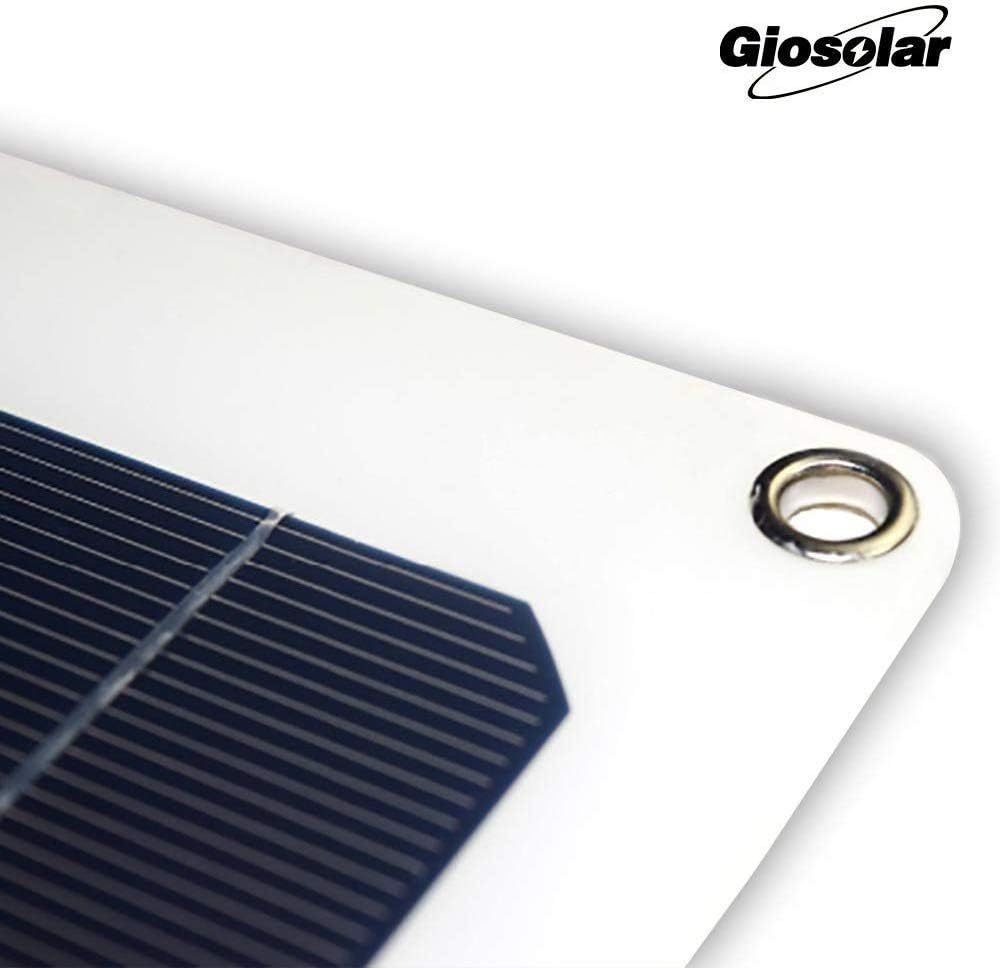

120W Flexible Monocrystalline Solar Panel Specifications:

·Maximum Power: 120W
·Optimum Operating Voltage (Vmp): 18 V
·Open-Circuit Voltage (Voc): 21.6 V
·Optimum Operating Current (Imp): 6.67 A
·Short-Circuit Current (Isc): 7.72A

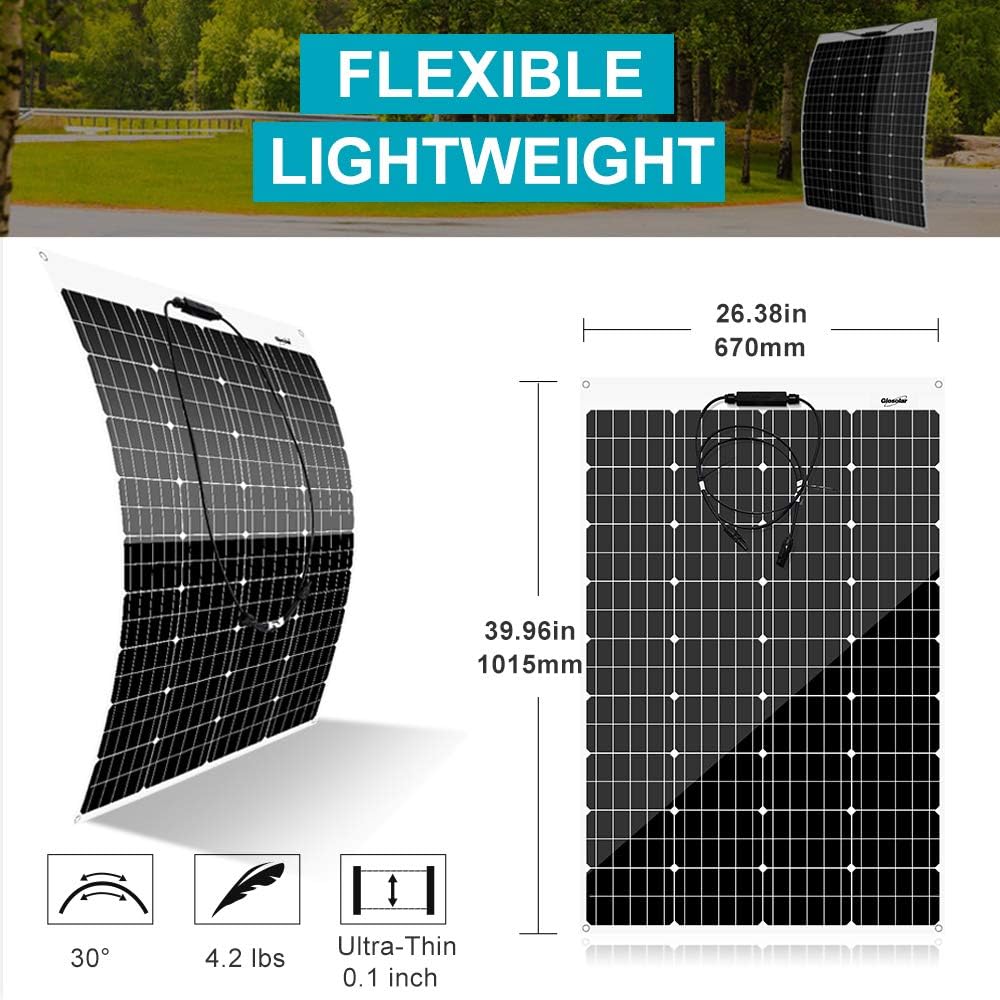

·Dimensions: 1015*670*2.5mm/39.96*26.38*0.1In
·Weight: 4.4 lbs (2.0KG)
·90cm of special cable with MC4 connectors attached.

400W Wind Turbine Specification:

Rated power 400W
Rated DC voltage AC 12V/24V
Rated current 32A/16A
Rated speed 1350r/m
Max power 420W
Number of blade 6pcs
Starting wind speed 2.5m/s
Cut-in wind speed 3m/s
Cut-out wind speed15m/s
Security wind speed 45m/s
Rated wind speed 12m/s
Engine Three-phase permanent magnel generator
Rotor diameter 1160mm
Blade materialCarbon fiber
Output line anti-winding device Overall three-phase commutator
Over-speed wind protection Tip stall protection + turned protection + Electromagnetic brake
Equipment surface protection Aluminum oxide + plastic coating
Working temperature -45° C-70° C
Packing material Carton box and foam material
packing dimension 720*390*210mm
G.W. 12kg
